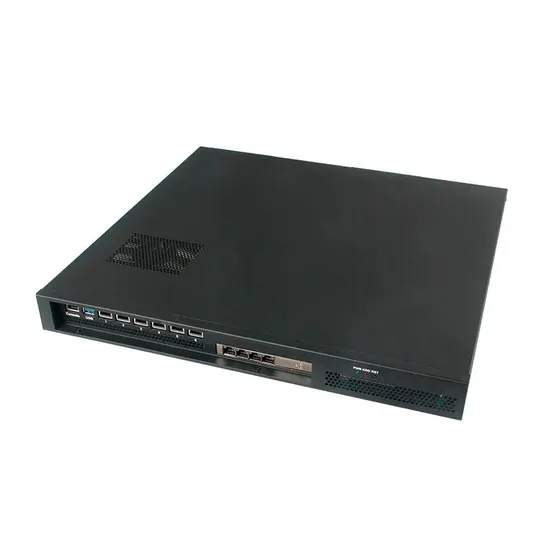

Industrial Server Chassis Mini PC Case Firewall Router Network Security Industrial Computer
Description
- Overview
- Product Description
- Detailed Photos
- Certifications
- OEM/ODM
- Why choose us
- Packaging & Shipping
- Company Profile
- FAQ
Basic Info.
| Model NO. | DUL-M-FA-50u6T |
| Memory | Max 48GB |
| Display | HD-(Mi) + VGA |
| Network | Intel I225V 2.5g Network |
| LAN | 6LAN |
| Power Supply | DC9-36V,150W |
| Size | 486X 411X 45 |
| Customized | Support OEM ODM |
| Transport Package | Box |
| Specification | 25X25X15 cm |
| Trademark | / |
| Origin | Guangdong, China |
| Production Capacity | 100000 |
Packaging & Delivery
Package Size30.00cm * 20.00cm * 10.00cm Package Gross Weight3.000kgProduct Description
Shenzhen Dulcimer Technology Co., Ltd. is a company that is engaged in some automation industrial products.
Our products include(but are not limited to: programmable logic controllers (PLC), human-machine interfaces (HMI), inverters, servers, relays, switches, sensors, circuit breakers, Compact air cylinders, pressure regulators, and others.We have a wide range of sales channels and a professional sales team. Dedicated to strict quality control and thoughtful customerservice from intimate pre-sales, sales, and after-sales, our experienced staff members are always available to discuss yourrequirements and ensure full customer satisfaction. Our products have successfully entered the market of many countries andregions around the world, like Singapore, Africa, India, and Italy, and have won the trust and support of many customers.As an experienced enterprise, we are always committed to providing customers with high-quality, high-performance industrialproducts to meet the changing market demand. Looking forward to cooperating with you to achieve a win-win situation anddevelopment.
Product Description
Industrial Server Chassis Case Firewall Router Mini PC * 1xVGA interface * 1 xRJ45 Console,2 xUSB3.0,6 xLAN(Inteli226-V) * 1 xexpansion bit, PCle 8X (PCle_x4) expansion,support full height 12CM expansion card (up to6 network ports) * 1 xPOWER LED, 1 xHDD LED,1 xRESET switch * Size: Depth 486x411x45mm (with mounting ear size)
| Material and surface treatment | Masteel, the outer surface is sprayed with sand pattern powder black |
| processor system | Onboard Intel 11th generation Tiger Lake-U series processors |
| Memory | Onboard memory particles, 1 x DDR4 SO-DIMM, up to 48GB in total |
| storage | 1 x M.2 M-Key 2280, default NVMe PCIe 3.0 x4 protocol, optional SATA3.0 protocol |
| 2 SATA3.0 ports, support 2 3.5-inch hard drives or 2 2.5-inch hard drives(Remarks: 1. When using dual power supplies, there is only one 3.5-inch hard drive; 2. Each 3.5-inch hard drive can be replaced by two 2.5-inch hard drives) | |
| show | 1 x VGA interface |
| Front panel interface | 1 x RJ45 Console, 2 x USB3.0, 6 x LAN(Intel i226-V) |
| 1 x expansion bit, PCIe 8X (PCIe_x4) expansion, support full height 12CM expansion card (up to 6 network ports) | |
| 1 x POWER LED, 1 x HDD LED, 1 x RESET switch | |
| rear panel interface | 2 x 4040 system fans, 1 x power switch, 1 x VGA port |
| Internal-Motherboard Expansion Functions | TPM2.0 is optional, there is no default |
| 1 x M.2 E-Key (PCIe/USB2.0 protocol, support WIFI/BT module) | |
| \ | 1 x M.2 B-Key(USB2.0/USB3.0 protocol, support 4G/5G module); 1 x Micro SIM card slot |
| 1 x PCIe 8X (PCIe_x4) expansion bit | |
| Choose one of SATA2 and CF card, default SATA2 | |
| power supply | 150W single power supply, optional redundant power supply (dual 150W) |
| working environment | Working temperature: -20ºC ~ +60ºC; Working humidity: 5% ~ 90% |
| Storage temperature: -40ºC ~ +85ºC; Storage humidity: 5% ~ 90% | |
| operating system support | Windows10, Windows11, Linux |
| size | Depth 486x Width 411x Height 45 ±2.0 mm (with mounting ear size) |
| weight | The gross weight of single power supply is about 4.5Kg, and the gross weight of dual power supply is about 6.5Kg |
Company Profile
FAQ 1. About unit price:
The price connected with the product chain is not the actual price, the specific model price please consult the seller to quoteagain, this price is not the actual price.
2. About product pictures:
Due to the large number of models, the product picture is for reference only, and the actual order of the original genuine
material shall prevail.
3. About Ordering:
Please confirm the correct order model before ordering, once ordered, no quality problems will not be returned!
4. About delivery time:
Usually, the estimated delivery time is about 3-7 working days after receiving the payment. If there are special circumstances, we will negotiate and communicate with the customer in advance.
