Ai Edge Computing Rk3566 Embedded Android 11 Industrial Desktop Computer Mini PC

Overview
Product Description
Company Profile
Certifications

Overview

Basic Info.

Model NO.	YC-T621
Screen Size	Without Screen
Touch Screen	Without Touch Screen
Type	IPC
Product Name	Ai Edge Computing Mini PC
Operating System	Android/Linux
CPU	Rk3566
RJ45	LAN Port (10m/100m/1000m Adaptive)
Interface	RS232, RS485 Option
WiFi	2.4G 802.11 B/G/N (5g WiFi Option)
HDMI	HDMI2.0 Output 4K
Warranty	12 Months
Installation	Embedded/Wall Mount/Desktop
Power Supply Type	DC 12V
Transport Package	White Box
Specification	19012030mm
Trademark	Portworld/ODM/OEM
Origin	China
HS Code	8528591090
Production Capacity	3000PCS / Week

Product Description

Ai Edge Computing Rk3566 Embedded Android 11 Industrial Desktop Computer Mini PC

Our Teams:

FAQ:
1.Can you accept sample order?A:Yes.Trail orders are acceptable
2.How long does it take to deliver the sample?A:It depends on different products,Most models are available. If OEM, it usually takes 10-15 days.
3.What's your Mini Order Quantity(MOQ)?A:It depends on different products,for AIO products, there's no MOQ,
4.What payment term you can accept?A:For sample, Trade Assurance or West Union is available,for big order by T/T,West Union.
5.How to ship the goods to us?A:For sample or small quantity,by Express .Such as DHL, FedEx, UPS etc
For big orders,normally by air or by sea. Also by Express
6.Can we have our own logo printed on the product or package?A:For sample,it usually be neutral.For big order,it support customized logo & packages..
7.How much will the customized logo cost?A:For big order, if your quantity up to our MOQ, it usually be free.
Product Description

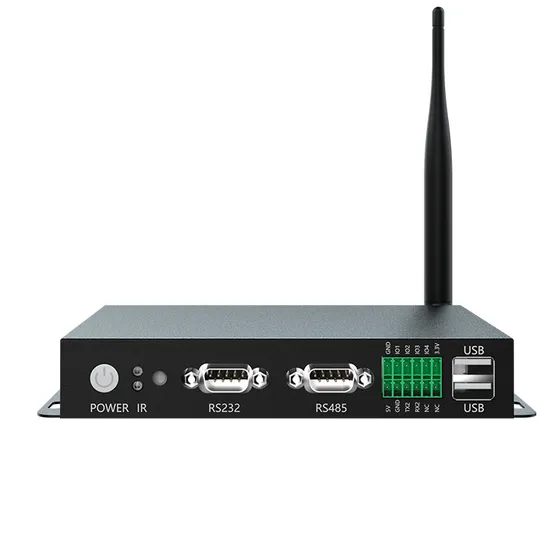

Product Apperance

Product Name

Advertising Player Edge Computering Terminal Mini Box

Product Dimension

190*120*30mm

Material

Metal

Weight

N.W: 656g

System Hardware Configuration

Chipset

RK3566 (A133/RK3568/RK3399/RK3588 Option)

Android / Debian

CPU

Quad-core Cortex-A55 up to 1.8Ghz

NPU

1TOPS NPU

GPU

ARM G52 2EE

Memory

2GB (4GB/8GB Option)

Storage

16GB (32GB/128GB Option)

RTC

BIOS Support

Automatic Startup

BIOS Support, support automatic startup after power on

POE

802.3AF/AT option

Dual Screen Output

HDMI video output

LED

Green: power-on light; Red: sleep light

Interface

Outer interface of the motherboard

1*earphone jack

1*HDMI output

1*Ethernet LAN port

2*USB 2.0

1*USB 3.0

1*Type-C OTG

1*DC 12V power input

1*WiFi Antenna

Expansion board interface

1*Mini SIM Option

1*RS232 serial port

1*RS485 serial port

Output: 5V*1, 3.3V*1

2*GND

4*GPIO

1*TX2

1*RX2

2*Reserved expansion port

2*USB 2.0 HOST

Internet

Ethernet

10M/100M/1000M adaptive

Bluetooth

Support Bluetooth 5.0

WiFi

2.4G 802.11 b/g/n (5G WiFi Option)

3G/4G

Option

Multimedia

Video

WMV, AVI, RMVB, MPEG, MP4, etc


BMP, JPG, PNG, GIF

Technical parameter

Input Voltage

100~240VAC 50/60Hz

Input Current

0-2A MAX

Output Voltage

Output Current

0-2A MAX

Working Environment

Working Temperature

0ºC~40ºC

Storage Temperature

-20~60ºC

Humidity

No condensation 0~90%RH

Accessories

Adapter

Input 100~240V 50/60Hz, output 5V/2A, DC 4.0*1.7mm

Antenna

Antenna*2 (WiFi 2.4+5.0G BT*1, WiFi 5G*1 Option)
